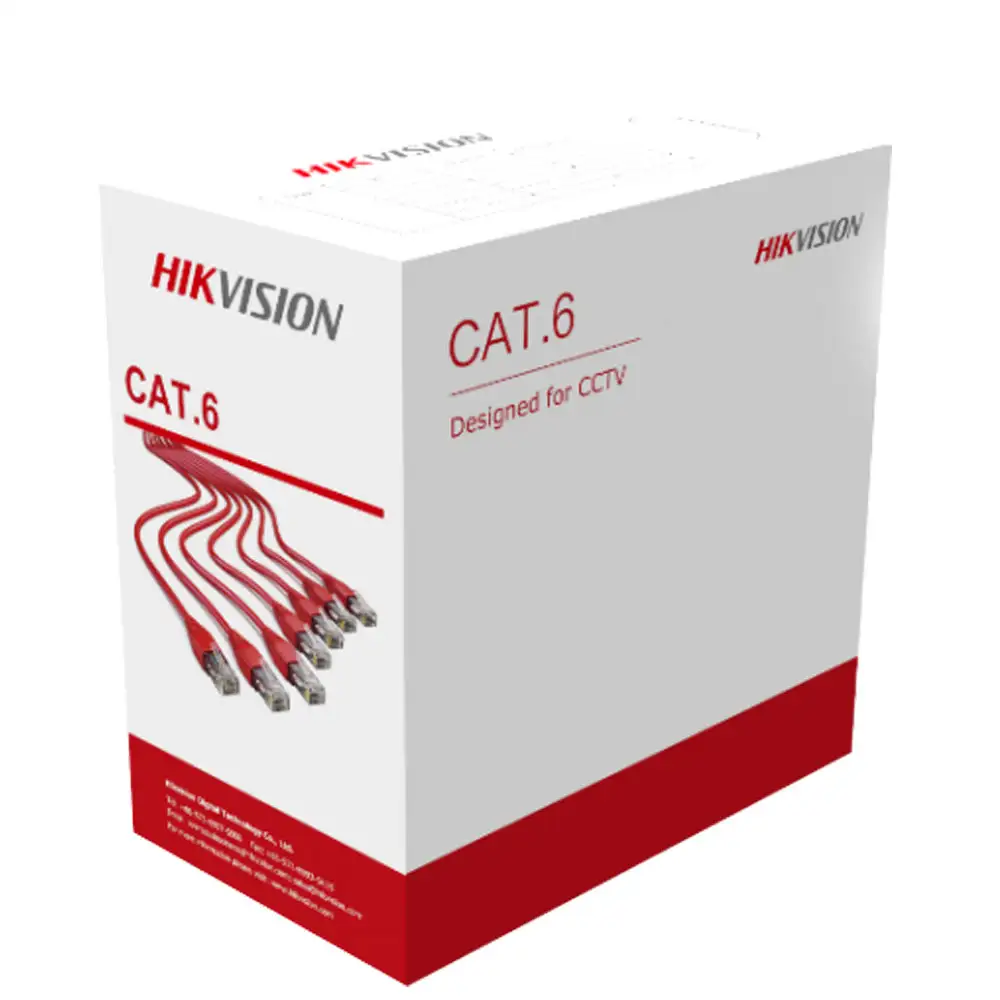

Hikvision Network Cable 305 m - DS-1LN6U-G

रू 15,900

Stock Available (100)

Buy Now

Consumer Electronics | Commonly Used Accessories & Parts | Cable
SKU: DS-1LN6U-G
Brand : Ubiquiti

Specification:

Cable
Category:		U/UTP CAT6-4P-PVC-CM
Test Standard:		ISO/IEC11801、TIA-568-C.2 、YD/T1019

Conductor
Material:		SOLID-Bare Copper
Nom.O.D.(mm):		0.565 up +0.005 down -0.005

Insulation
Material:		HDPE
Diameter:		1.02±0.03mm

Sheath
Thickness:		0.55±0.05 mm
External O.D.:		6.2±0.4 mm
Surface:		Clean,Frap,Satiation
Material:		PVC(complies RoHS),CM
Color:		Multiple

Surface Printing
Letter height:		3.0±0.3mm
Color:		Black
Print error & Space:		≤±0.5%，1m

General
Core Color:		1 White- Blue /Blue 2 White-Orange /Orange 3 White-Green /Green 4 White- Brown /Brown
Rip-cord:		Yes
Drain wire:		No
Sheath Physical Properties:		Before Aging Tensile Strength (Mpa) ≥13.5 Elongation(%) ≥150 Aging Period (℃×hrs) 100℃×24h×10d After Aging Tensile Strength(Mpa) ≥12.5 Elongation(%) ≥125 Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks
Electrical Characteristics:		1.0-250.0MHz Impedance ((Ω) 100±15 1.0-250.0MHz Delay Skew (ns/100m) ≤45 DC Resistance (Ω/100m) max 9.38 DC Conductor Resistance Unbalance (%) max 5.0
Ambient temperature:		-20℃ - 75℃
